Mitsubishi MSZ-EF25VEB Inverter Air Conditioner

The new Zen MSZ-EF series is a stylish, black wall mounted system. Featuring the new Nano-Platinum filter system, these models also offer industry leading noise levels and have a distinctively styled front panel that not only looks appealing but also helps to make cleaning of the unit easier.
MSZ-EF25VEB Indoor Unit

Capacity (kW):
Heating (Nominal) (Low - High)	3.20 (1.10 - 4.20)
Cooling (Nominal) (Low - High)	2.50 (1.20 - 3.40)
Heating (UK) (Low - High)	2.65 (0.90 - 3.50)
Cooling (UK) (Low - High)	2.50 (1.20 - 3.35)
SHF R410A (Nominal)	0.92
COP / EER (Nominal)	4.57 / 4.59
Energy Label Heating / Cooling	A / A
Width - mm	895
Depth - mm	195
Height - mm	299
Weight - kg	11.5
Airflow (m3/min) (Heating /Cooling) - Lo-Mi1-Mi2-Hi-SupHi	4-4.6-6.2-8.9-11.9 /4-4.6-6.3-8.3-10.5
Noise (dBA) (Heating /Cooling) - Lo-Mi1-Mi2-Hi-SupHi	21-24-29-37-45 /21-23-29-36-42
Pipe Size Gas mm (in)	9.52 (3/8)
Pipe Size Liquid mm (in)	6.35 (1/4)
Electrical Supply	Fed by Outdoor unit
Phase	Single
Fuse Rating (BS88) - HRC (A)	6
Interconnecting Cable No. Cores	4

MUZ-EF25VE Outdoor Unit

Width - mm	800
Depth - mm	285
Height - mm	550
Weight - kg	30
Noise (dBA) (Heating /Cooling)	48 /47
Electrical Supply	220-240v, 50Hz
Phase	Single
Fuse Rating (BS88) - HRC (A)	10
SystemPower Input (kW) - Heating (Nominal)	0.7
SystemPower Input (kW) - Cooling (Nominal)	0.545
SystemPower Input (kW) - Heating (UK)	0.637
SystemPower Input (kW) - Cooling (UK)	0.436
Starting Current (A)	3.5
SystemRunning Current (A) - Heating / Cooling	3.5 / 2.9
Mains Cable No. Cores	3
Max Pipe Length (m)	20
Max Height Difference (m)	12
Charge R410A (kg) - 7m	0.8

Mitsubishi MSZ-FD35VA Inverter

R410A Wall Mounted System

The MSZ-FD Series is our most efficient M Series wall mounted unit to date. These high COP models feature the new Plasma Duo filter system. These models also offer industry leading noise levels and has a distinctively styled front panel that not only looks appealing but also helps make the cleaning of the unit easier.

Also incorporated is an I-See Sensor, providing even temperature distribution and further reducing energy consumption.

MSZ-FD35VA Indoor Unit

Capacity (kW):
Heating (Nominal) (Low - High)	4.00 (1.30 - 6.60)
Cooling (Nominal) (Low - High)	3.50 (0.80 - 4.00)
Heating (UK) (Low - High)	3.30 (1.10 - 5.50)
Cooling (UK) (Low - High)	3.45 (0.80 - 3.95)
SHF R410A (Nominal)	0.85
COP / EER (Nominal)	4.76 / 4.19
Energy Label Heating / Cooling	A / A
Width - mm	798
Depth - mm	257
Height - mm	295
Weight - kg	12
Airflow (m3/min) (Heating /Cooling) - Lo-Mi1-Mi2-Hi	4.7-6.7-9.2-12.5 /4.6-6.3-8.6-11.2
Noise (dBA) (Heating /Cooling) - Lo-Mi1-Mi2-Hi	21-29-36-44 /21-29-36-43
Pipe Size Gas mm (in)	9.52 (3/8)
Pipe Size Liquid mm (in)	6.35 (1/4)
Electrical Supply	Fed by Outdoor Unit
Phase	Single
Fuse Rating (BS88) - HRC (A)	6
Interconnecting Cable No. Cores	4

MUZ-FD35VABH Outdoor Unit

Width - mm	800
Depth - mm	285
Height - mm	550
Weight - kg	36
Noise (dBA) (Heating /Cooling)	50 /47
Electrical Supply	220-240v, 50Hz
Phase	Single
Fuse Rating (BS88) - HRC (A)	16
SystemPower Input (kW) - Heating (Nominal)	0.84
SystemPower Input (kW) - Cooling (Nominal)	0.835
SystemPower Input (kW) - Heating (UK)	0.764
SystemPower Input (kW) - Cooling (UK)	0.668
Starting Current (A)	3.9
SystemRunning Current (A) - Heating / Cooling	3.9 / 3.8
Mains Cable No. Cores	3
Max Pipe Length (m)	20
Max Height Difference (m)	12
Charge (kg) - 7m	1.15

Mitsubishi Electric MSZ-GE25VA / MUZ-GE25VA

Model	MSZ-GE25VA / MUZ-GE25VA
Type	Single Split
Mounting	Wall Mounted
Air Control
Cooling	Yes
Heating	Yes
Airflow Direction Control	Yes
System againt the frost\ice prevention	Yes
Automatic Mode	Yes
Capacity
Cooling Capacity	2500 W
Heating Capacity	3200 W
Efficiency
Energy Input (Heating)	700 W
Energy Input (Cooling)	545 W
Power Supply	Three Phase
Invertor	Yes
Refrigerant	R 410A
Dimensions
Indoor Unit Width	31.3 in (79.8 cm)
Indoor Unit Height	9.1 in (23.2 cm)
Indoor Unit Depth	11.6 in (29.5 cm)
Outdoor Unit Width	31.4 in (80 cm)
Outdoor Unit Height	11.2 in (28.5 cm)
Outdoor Unit Depth	21.6 in (55 cm)
Connection Pipe Max Lenght	20 m
Filters
Fine Air Filter	Yes
Deodourising Filter	Yes
Features
Auto restart	Yes
Remote Control	Yes
Programmable Timer	Yes
Indoor noise level	19 dB - 42 dB

Mitsubishi Electric MSZ-FD25VA Air Conditioner

Model	MSZ-FD25VA / MUZ-FD25VABH
Type	Single Split
Mounting	Wall Mounted
Air Control
Cooling	Yes
Heating	Yes
Airflow Direction Control	Yes
System againt the frost\ice prevention	Yes
Automatic Mode	Yes
Capacity
Cooling Capacity	2500 W
Heating Capacity	3200 W
Efficiency
Energy Input (Heating)	600 W
Energy Input (Cooling)	485 W
Power Supply	Three Phase
Invertor	Yes
Refrigerant	R 410A
Dimensions
Indoor Unit Width	31.3 in (79.8 cm)
Indoor Unit Height	10.1 in (25.7 cm)
Indoor Unit Depth	11.6 in (29.5 cm)
Outdoor Unit Width	31.4 in (80 cm)
Outdoor Unit Height	11.2 in (28.5 cm)
Outdoor Unit Depth	21.6 in (55 cm)
Connection Pipe Max Lenght	20 m
Filters
Fine Air Filter	Yes
Deodourising Filter	Yes
Plasma Filter	Yes
Anion generator	Yes
Features
Auto restart	Yes
Remote Control	Yes
Programmable Timer	Yes
Sleep Mode	Yes
Indoor noise level	20 dB - 43 dB

External power Mitsubishi Heavy FDC112KXES6 3f/380V

Type of mounting	wall
Serviced Area	110 sq.m
Series	FDC KXES6
The power output during cooling	11.2 kW
The power output for heating	12.5kW
Consumed. power for heating	2.89 kW
Consumed. power for cooling	2.8 kW
Min. noise (ext. / cum. unit)	54 dB
Max. noise (ext. / cum. unit)	52 dB
Permissible ambient air temperature for heating (max / min)	16/-20 of C
Permissible ambient air temperature during cooling (max / min)	43/-15 of C
Type of Refrigerant	R410-A
Power Connection	380
Number of units	1 Piece
Weight of outdoor unit	82 kg
Gross weight of outdoor unit	90.2 kg
Dimensions of outdoor unit	845h970h370 mm
Max. length of communications	100 m

External power Mitsubishi Heavy FDC112KXEN6 1f

Type of mounting	wall
Serviced Area	110 sq.m
Series	FDC KXEN6
The power output during cooling	11.2 kW
The power output for heating	12.5kW
Consumed. power for heating	2.89 kW
Consumed. power for cooling	2.8 kW
Min. noise (ext. / cum. unit)	52 dB
Max. noise (ext. / cum. unit)	54 dB
Permissible ambient air temperature for heating (max / min)	16/-20 of C
Permissible ambient air temperature during cooling (max / min)	43/-15 of C
Type of Refrigerant	R401A
Power Connection	220
Number of units	1 Piece
Weight of outdoor unit	82 kg
Gross weight of outdoor unit	90.2 kg
Dimensions of outdoor unit	845h970h370 mm
Max. length of communications	100 m

Mitsubishi Heavy FDC112KXE6N (S) Air Conditioner

The manufacturer Mitsubishi Heavy (Japan)
Inverter Yes
Productivity in the cold (kW) 11.20
Performance of heat (kW) 12.50
(m2) 110
Type of refrigerant R410
Dimensions (mm) 970h845h410
Multizone AIR SERIES KX6
KX6 system represents a new, fourth generation multi-zone VRF systems, manufactured by Mitsubishi Heavy Industries.
The range includes a low power system (the so-called mini-VRF), intended for residential air conditioning and small offices, and "full-size» VRF-systems for air conditioning systems of large area.
The range of outdoor unit includes a model of cooling capacity from 11.2 to 136 kW, with outdoor units capacity of 22.4, 28 and 33.5 kW are ultra-compact size (the smallest in the industry), which allows them to be mounted on the walls.
Range of indoor units includes 76 models of thirteen different types.
KH6 series systems have a number of innovative features that facilitate commissioning and maintenance (checking refrigerant, a self-test before the first start, etc.), making them one of the most convenient to install .
FEATURES:
High efficiency and compactness achieved by the following technologies:
an optimized form of the heat exchanger fins,
the optimum air velocity,
improved refrigerant distribution system

Mitsubishi Heavy FDC100VN (S) Air Conditioner

Country	Japan
Manufacturer	Mitsubishi HEAVY
Inverter control	yes
Warranty	3 years
INDOOR UNIT	-
Cooling capacity (kBt)	10
Heat (kBt)	11.2
The power consumed by the cooling system (kBt)	-
The power consumed by a system of heating (kBt)	-
Energy Efficiency Ratio EER (Cooling)	-
Energy efficiency ratio COP (heating)	-
Air flow rate (cooling) cbm / h	-
Annual energy consumption (kBt / h)	-
Air consumption (heating) cbm / h	-
Sound Pressure Level (cooling) dB	-
Sound pressure level (heating) dB	-
Refrigerant piping (Maximum length / height difference) mm	-
Refrigerant piping (pipe diameter) mm	-
Dimensions (HxWxD)	-
Weight (kg)	-
For premises (Orientirovono) m / q	100
OUTDOOR UNIT	-
Dimensions (HxWxD)	845x970x370
Sound pressure level (heating) dB	49.0
Sound Pressure Level (cooling) dB	49.0
Operating temperature (heating) ° C	-15 - 24
Operating temperature range (cooling) ° C	-15 - 43
Coolant	R410A
Power supply (V / W)	220-380/50

Mitsubishi PLFY-P32VCM-E2 Air Conditioner

The compact size of this unit is ideal for 600 by 600mm ceilings and with a depth of 208mm, this lightweight unit makes installation a breeze. This unit also comes complete with a long life filter that will last for approximately 2,500 hours.

Capacity (kW):
Heating (Nominal)	4.0
Cooling (Nominal)	3.6
Heating (UK)	4.0
Cooling (UK)	3.4
R410A High Sensible Cooling (UK)	2.6
SHF R410A (UK)	0.76
SHF High Sensible R410A (UK)	0.85
Power Input (kW) Heating (Nominal)	0.06
Power Input (kW) Cooling (Nominal)	0.06
Airflow(m3/min)(Heating /Cooling) - Lo-Mi-Hi	8-9-11 /8-9-11
Noise (dBA) (Heating/Cooling) - Lo-Mi-Hi	29-33-3829-33-38
Width (grille) - mm	570 (650)
Depth (grille) - mm	570 (650)
Height (grille) - mm	235 (255)
Weight (grille) - kg	17 (20)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.28
Running Current (A) - Cooling	0.28
Fuse Rating (BS88) - HRC (A)	6

Mitsubishi PLFY-P25VCM-E2 Air Conditioner

The compact size of this unit is ideal for 600 by 600mm ceilings and with a depth of 208mm, this lightweight unit makes installation a breeze. This unit also comes complete with a long life filter that will last for approximately 2,500 hours.

Capacity (kW):
Heating (Nominal)	3.2
Cooling (Nominal)	2.8
Heating (UK)	3.2
Cooling (UK)	2.7
R410A High Sensible Cooling (UK)	2.0
SHF R410A (UK)	0.78
SHF High Sensible R410A (UK)	0.95
Power Input (kW) Heating (Nominal)	0.05
Power Input (kW) Cooling (Nominal)	0.05
Airflow(m3/min)(Heating /Cooling) - Lo-Mi-Hi	8-9-10 /8-9-10
Noise (dBA) (Heating/Cooling) - Lo-Mi-Hi	28-31-3728-31-37
Width (grille) - mm	570 (650)
Depth (grille) - mm	570 (650)
Height (grille) - mm	235 (255)
Weight (grille) - kg	15.5 (18.5)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.23
Running Current (A) - Cooling	0.23
Fuse Rating (BS88) - HRC (A)	6

Mitsubishi PLFY-P20VCM-E2 Air Conditioner

The compact size of this unit is ideal for 600 by 600mm ceilings and with a depth of 208mm, this lightweight unit makes installation a breeze. This unit also comes complete with a long life filter that will last for approximately 2,500 hours.

Capacity (kW):
Heating (Nominal)	2.5
Cooling (Nominal)	2.2
Heating (UK)	2.5
Cooling (UK)	2.1
R410A High Sensible Cooling (UK)	1.6
SHF R410A (UK)	0.86
SHF High Sensible R410A (UK)	1.0
Power Input (kW) Heating (Nominal)	0.05
Power Input (kW) Cooling (Nominal)	0.05
Airflow(m3/min) - Lo-Mi-Hi	8-9-10
Noise (dBA) - Lo-Mi-Hi	28-31-35
Width (grille) - mm	570 (650)
Depth (grille) - mm	570 (650)
Height (grille) - mm	235 (255)
Weight (grille) - kg	15.5 (18.5)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.23
Running Current (A) - Cooling	0.23
Fuse Rating (BS88) - HRC (A)	6

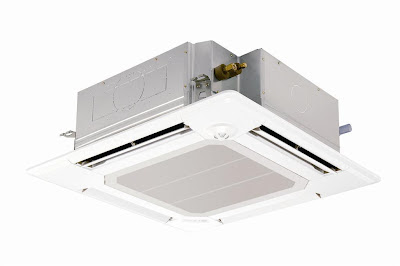

Mitsubishi PLFY-P125VBM-E Air Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	16.0
Cooling (Nominal)	14.0
Heating (UK)	14.8
Cooling (UK)	12.5
R410A High Sensible Cooling (UK)	10.2
SHF R410A (UK)	0.71
SHF High Sensible R410A (UK)	0.74
Power Input (kW) Heating (Nominal)	0.15
Power Input (kW) Cooling (Nominal)	0.16
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	22-25-28-30
Noise (dBA) - Lo-Mi1-Mi2-Hi	35-38-41-43
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	298 (35)
Weight (grille) - kg	27 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	1
Running Current (A) - Cooling	1.07
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P100VBM-E A ir Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	12.5
Cooling (Nominal)	11.2
Heating (UK)	11.6
Cooling (UK)	10.0
R410A High Sensible Cooling (UK)	8.1
SHF R410A (UK)	0.73
SHF High Sensible R410A (UK)	0.79
Power Input (kW) Heating (Nominal)	0.14
Power Input (kW) Cooling (Nominal)	0.15
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	21-24-27-29
Noise (dBA) - Lo-Mi1-Mi2-Hi	34-37-39-41
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	298 (35)
Weight (grille) - kg	27 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.94
Running Current (A) - Cooling	1
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P80VBM-E Air Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	10.0
Cooling (Nominal)	9.0
Heating (UK)	9.2
Cooling (UK)	8.0
R410A High Sensible Cooling (UK)	6.5
SHF R410A (UK)	0.73
SHF High Sensible R410A (UK)	0.78
Power Input (kW) Heating (Nominal)	0.06
Power Input (kW) Cooling (Nominal)	0.07
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	16-18-20-22
Noise (dBA) - Lo-Mi1-Mi2-Hi	30-32-35-37
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	258 (35)
Weight (grille) - kg	23 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.43
Running Current (A) - Cooling	0.51
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P63VBM-E Air Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	8.0
Cooling (Nominal)	7.1
Heating (UK)	7.4
Cooling (UK)	6.3
R410A High Sensible Cooling (UK)	5.2
SHF R410A (UK)	0.75
SHF High Sensible R410A (UK)	0.79
Power Input (kW) Heating (Nominal)	0.04
Power Input (kW) Cooling (Nominal)	0.05
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	14-15-16-18
Noise (dBA) - Lo-Mi1-Mi2-Hi	28-29-30-32
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	258 (35)
Weight (grille) - kg	23 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.29
Running Current (A) - Cooling	0.36
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P50VBM-E Air Conditoner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	6.3
Cooling (Nominal)	5.6
Heating (UK)	5.8
Cooling (UK)	5.0
R410A High Sensible Cooling (UK)	4.1
SHF R410A (UK)	0.76
SHF High Sensible R410A (UK)	0.83
Power Input (kW) Heating (Nominal)	0.03
Power Input (kW) Cooling (Nominal)	0.04
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	12-13-14-16
Noise (dBA) - Lo-Mi1-Mi2-Hi	27-28-30-31
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	258 (35)
Weight (grille) - kg	22 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.22
Running Current (A) - Cooling	0.29
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P40VBM-E Air Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	5.0
Cooling (Nominal)	4.5
Heating (UK)	4.6
Cooling (UK)	4.0
R410A High Sensible Cooling (UK)	3.3
SHF R410A (UK)	0.83
SHF High Sensible R410A (UK)	0.91
Power Input (kW) Heating (Nominal)	0.03
Power Input (kW) Cooling (Nominal)	0.04
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	12-13-14-16
Noise (dBA) - Lo-Mi1-Mi2-Hi	27-28-30-31
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	258 (35)
Weight (grille) - kg	22 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.22
Running Current (A) - Cooling	0.29
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi PLFY-P32VBM-E Air Conditioner

Power cassettes offer 72 different airflow patterns, with the ability to handle a multitude of ceiling applications up to 4.2 meters in height. The easy to install unit is ideal for maintaining constant temperatures, thanks to adjustable vanes that allow users to precisely direct air where it's needed.

Capacity (kW):
Heating (Nominal)	4.0
Cooling (Nominal)	3.6
Heating (UK)	3.7
Cooling (UK)	3.2
R410A High Sensible Cooling (UK)	2.6
SHF R410A (UK)	0.84
SHF High Sensible R410A (UK)	0.96
Power Input (kW) Heating (Nominal)	0.02
Power Input (kW) Cooling (Nominal)	0.03
Airflow(m3/min) - Lo-Mi1-Mi2-Hi	11-12-13-14
Noise (dBA) - Lo-Mi1-Mi2-Hi	27-28-29-31
Width (grille) - mm	840 (950)
Depth (grille) - mm	840 (950)
Height (grille) - mm	258 (35)
Weight (grille) - kg	22 (6)
Electrical Supply	220-240v, 50Hz
Phase	Single
Mains Cable No. Cores	3
Running Current (A) - Heating	0.14
Running Current (A) - Cooling	0.22
Fuse Rating (BS88) - HRC (A)	6
Grille Ref	PLP-6BA GRILLE

Mitsubishi Electric MSZ-GC25VA Air Conditioner

Manufacturer	Mitsubishi Electric
Model	MSZ-GC25VA / MUZ-GC25VA
Type	Single Split
Mounting	Wall Mounted
Air Control
Cooling	Yes
Heating	Yes
Automatic Mode	Yes
Capacity
Cooling Capacity	2500 W
Heating Capacity	3200 W
Efficiency
Power Supply	Three Phase
Invertor	Yes
Refrigerant	R 410A
Dimensions
Indoor Unit Width	30.9 in (78.8 cm)
Indoor Unit Height	9.2 in (23.4 cm)
Indoor Unit Depth	11.4 in (29 cm)
Outdoor Unit Width	21.2 in (54 cm)
Outdoor Unit Height	26.8 in (68.4 cm)
Outdoor Unit Depth	10 in (25.5 cm)
Connection Pipe Max Lenght	20 m
Filters
Fine Air Filter	Yes
Features
Moisture Removal	Yes
Auto restart	Yes
Remote Control	Yes
Programmable Timer	Yes
Sleep Mode	Yes
Indoor noise level	21 dB - 43 dB

Mitsubishi MFZ-KA Series - 2.5kW - 4.8kW

The compact floor-standing air conditioner from Mitsubishi Electric combines a mix of streamlined form and diversified function. Engineered to keep room walls free, these models provide cooling in the summer and heating in the winter. Both upper and lower air outlets remain closed when switched off, providing a clean appearance.

The compact size of the indoor unit (only 700 mm wide x 600 mm high) makes it an ideal size for living rooms, bedrooms or any space where wall space is a premium.

Features
Inverter Technology Inverter technology is your key to more comfort throughout the year, whatever the season. By controlling compressor rotation speed more precisely, inverter technology provides high-speed cooling and heating with extra energy savings compared to non-inverter models.
"I Feel" Control The original one-touch Fuzzy-logic "I Feel" control memorises the ideal temperature and recreates it precisely every time.
"Econo Cool" Allows set temperatures to be raised without any loss in comfort for a 20% gain in energy efficiency, compared to conventional cooling mode.
24-Hour Timer On/off operation can be set simultaneously in 10-minute increments for a 24-hour period.
Healthy Catechin Filter Catechin, a bioflavonoid found in green tea is used in the filters for its antiviral and antioxidant qualities. Catechin also offers excellent deodorising characteristics, which is why Mitsubishi Electric uses this compound in it air conditioning filters to not only improve air quality but to also prevent the spread of bacteria and viruses in the room.
Anti-Allergy Enzyme Filter (Optional) Anti-Allergy Enzyme Filters are combined with the Catechin Filters provide deodorisation, allergen inactivation, bacteria elimination and antiviral effects. The anti-allergy enzyme filter catches dead mites and their droppings, pollen and other allergens on the filter filament, and then decomposes them with artificial enzymes. A sterilising agent then provides greater antiviral effects.
Auto Restart Especially useful during sudden blackouts as the unit will turn back on automatically when power is restored.
Swing Mode Automatically swings the vane for a more natural and comfortable airflow throughout the room.
Auto Vane The vane shuts automatically when the air conditioner is not operating to conceal the air outlet and create an aesthetically appealing flat surface.

Mitsubishi Ducted Air Conditioning

Mr. Slim ceiling concealed ducted systems, offer a convenient and versatile solution for air conditioning your whole home, or several rooms at the same time. Almost limitless installation possibilities are available to you. Common configurations include whole home, multi indoor and night/day zoning. In whole home systems your air conditioning specialist will select a unit that is capable of cooling and heating your whole home and custom design the duct work and installation to suit your specific needs.

In special cases, like split level homes or apartments, multiple indoor units can be used in conjunction with a single outdoor unit to provide greater installation flexibility.

An alternative to whole home systems is night and day zoning. With zoned systems, in addition to duct work being installed throughout your home, a zone damper(s) is included in the ducting design. Typically, during day time operation, the air flows into the living room spaces that are occupied. The bedroom damper remains shut so that no air flows into that part of the home. At night time the zone damper is activated redirecting the air from the living room spaces to the bedrooms. This approach requires smaller air conditioning equipment than a non zoned system, keeping capital cost and running cost to a minimum.

Mr. Slim ceiling concealed ducted systems have many advanced features which maximise user comfort.

Features Include:

• Limitless installation possibilities
• Hot start system - heating will always begin comfortably with warm air since the hot start system prevents cold air from being blown out at the start of heating and during defrosting.
• Computerised dehumidification - maintains the set temperature whilst eliminating the effects of humidity.
• Self Diagnostics - in the unlikely event of a malfunction, the system detects problems and advises the nature of the fault. This simplifies service should it be required.
• Automatic cooling/heating change over operation for more comfort.
• Liquid Crystal Display (LCD) wall mounted controller for convenient use.
• Heating operation is guaranteed down to -8.5:C.
  Cooling operation is guaranteed up to 43:C.

Optional accessories include

• Air outlet guide – outdoor
• Remote sensor
• Soft starter (PEH2.5/3 only) limits starting current to 34 amperes on single phase models, minimising the potential effects of light flicker.
• Optional LCD control for two storey homes
• Program timer with or without night set back
• Salt proof outdoor unit specification (special order only) for total seaside protection. Treatment includes unit cabinet, hydrophilic coils, motor housing and shaft, printed circuit boards, etc...

Mitsubishi VRF Air Conditioners

City Multi - Y and Super Y Series, cooling only and heat pump systems

Y and Super Y series units provide either heating or cooling, with the condensing units coming in a number of different sizes. 8,10, 16 and 20 horse power (23.3-52.3kW) for the Y Series and 24, 26, 28 and 30 horse power (69.8-87.3kW) for the Super Y. Up to 20 indoor units can be connect to the Y Series, and 32 to the Super Y, depending on the outdoor unit size.

R2 and WR2, simultaneous heating and cooling

The R2 system provides simultaneous heating and cooling, with the BC controller connecting several indoor units to one outdoor unit using only 2 pipes. With energy saving heat recovery operation, economy and efficiency are guaranteed. Outdoor units come in 8 and 10 horse power models, and up to 16 indoor units can be connected, depending on the model. The WR2 system introduces a water cooled condenser, making it suitable for an even wider range of applications. High COP’s are possible thanks to increased efficiency and careful control of the water circuit temperature.

Big R2 simultaneous heating and cooling

The R2 Series is now also available in 16 and 20 horse power condensing units and with the addition of a second BC controller, up to 24 internal units can be accommodated onto a single condensing unit.

G-50A Centralised Remote Controller

• The industry's first VRF controller with web server functions
• Can control up to 50 indoor units
• Simple and flexible, suitable for small to large system with simple to complex function
• Enable monitoring and operation of the air conditioning units using a PC with Internet Explorer
• Allows users to remotely monitor and operate the air conditioning units using a PC connected to a telephone line.
• In the case of a malfunction, necessary information will be sent to a PC via email.
• Easy to upgrade with various new function being introduced gradually which can be easily down loaded into any existing G50-a
• Up to a maximum of 40 G50-A’s can be network together via the TG2000 front end software.

Benefits of the City Multi System include

• Allows a rapid and economic design solution
• Extensive equipment range to satisfy all applications
• Ease of installation
• Ease of maintenance
• Maximise lettable floor space
• Economic and flexible installation
• Low running and maintenance costs
• Year round comfort

Key features of City Multi

• Available in a range of indoor unit styles, including, wall mounted, ceiling cassette, ceiling suspended, floor standing and ceiling concealed ducted
• Indoor units cooling capacities from 2.3kW through to 14.5kW
• R407C Refrigerant
• Low indoor unit sound levels
• Numerous control options available including, simplified, group controllers and PC
• Can be controlled in conjunction with the P Series and Lossnay range of units
• Interfaces to BMS systems available, including Trend and LonWorks
• GUF freshmaster unit, heat recovery ahu with DX cooling and heating (500 and 1000m3/h)
